What’s new in the latest version of the Model Comparer for Entity Framework 4

The following is a brief description of some of the new functionality that was just added to the Model Comparer for EF4.

An introduction video to the model comparer is available in the previous blog entry: “Introducing the Model Comparer for Entity Framework v4”.


New Version – new features

Yesterday I released a new version of Huagati DBML/EDMX Tools, and with it a new version of the Model Comparer with a pile of fixes, improvements, and some new features.

The goal of the Model Comparer is to give developers using Entity Framework 4.0 in Visual Studio 2010 better control over differences between the conceptual model (CSDL) and storage model (SSDL), and between the database and the storage model in EFv4 models. It does that by comparing the three layers and showing detected differences in three treeviews. The user can then select individual differences (or all) and either bring them across to the opposite layer or tell the Model Comparer to ignore differences.

The core functionality in the Model Comparer is described in more detail in the intro video in “Introducing the Model Comparer for Entity Framework v4”. If you haven’t used the model comparer or watched the intro video you may want to start with that one to get an idea of what the Model Comparer itself can do and how it works.

To give users even more control over what the Model Comparer takes into account when determining differences between the layers, it has a number of user-controllable settings. In the first version (add-in version 1.91) those settings were stored in XML files but not readily accessible from the UI.

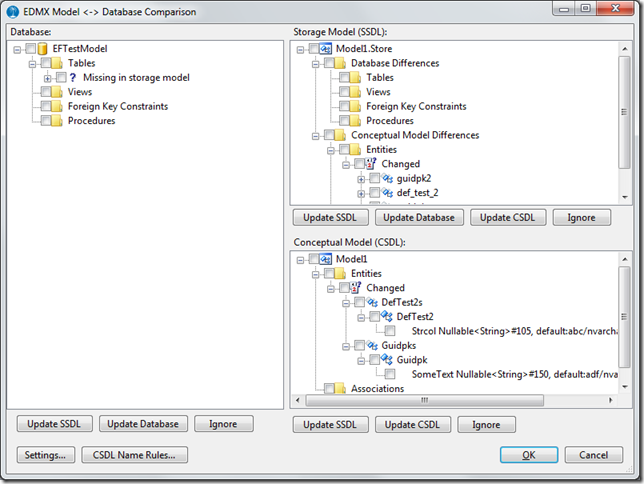

As of version 1.92 there are UI dialogs exposing the most common settings. The settings dialogs are accessible through two new buttons in the lower left corner of the Model Comparer dialog:


The first button, “Settings” controls the behavior of the model comparer, and the second one, “CSDL Name Rules” define the naming rules used when creating CSDL entities and members from SSDL objects.

Model Comparer Settings

Most of these settings are simple on-off options so the settings dialog are cluttered with has a lot of checkboxes. (Yes, I know, checkbox-hell, but hopefully the settings themselves are self-explanatory enough to make it survivable on the rare occasions that these settings may need to be tweaked. It was really down to a choice between checkbox-hell and property-grid-hell and I think checkbox-hell is still easier to get an overview over.)


So, let’s break it down. The settings are grouped by the model area that they correspond to: Database, SSDL, CSDL.

Additionally there is one shared group of settings for SSDL/CSDL member differences, and one group that define what – if any - database default constraints should translate into store generated patterns in the model.

Database-to-SSDL difference settings

The first group of checkboxes controls if the model comparer should detect tables, views, columns, FK constraints, procedures and functions that exist in the database but has no representation in the SSDL:


The next group of checkboxes control what types of differences between database columns and SSDL member properties should be included in the database tree as DB->SSDL differences:


Finally, the last group of database diff settings are for stored procedures and functions; these settings control what type of differences should land stored procedures and database functions on the list of procedures with differences between the database and SSDL:


SSDL difference settings

The second portion of the settings dialog, SSDL settings, controls what types of objects present in the SSDL should be shown in the SSDL tree if not present in the database or CSDL.

The first five settings control the SSDL-to-database missing-objects comparison:


…and the following four settings controls the SSDL-to-CSDL missing-objects comparison:


CSDL difference settings

The next portion of the settings dialog, CSDL, controls if CSDL objects not present in the SSDL portion of the model should be displayed in the Model Comparer’s CSDL tree:


CSDL-to-SSDL difference settings

The CSDL to SSDL settings portion controls what types of differences at entity member level should land entities and their members on the diff list in the CSDL and SSDL trees. These settings are shared between both portions since differences in this area are shown in both trees:


Database constraint settings

The final portion of the Model Comparer’s settings dialog controls which – if any – database default constraints should be treated as StoreGeneratedPattern: Identity or StoreGeneratedPattern: Computed instead of the default StoreGeneratedPattern: None.


This comes in handy if primary key values are generated database-side by a default constraint like NewID or NewSequentialID, or if a table has ‘created date/time’ fields that are populated by the database rather than the client application.

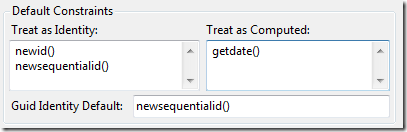

There is also one field that control what the default constraint should be set to if generating SQL-DDL from the model comparer for tables with GUID PKs marked as StoreGeneratedPattern: Identity in the model. The default value is NewSequentialID but it can be changed to NewID or a user-defined function, as needed.

CSDL name rules

The second settings button available in the Model Comparer controls how CSDL entities and CSDL members generated from SSDL artifacts should be named. It allows you to e.g. strip underscores, apply ProperCase/pascal casing to class and member names, control pluralization and singularization, remove (or add) prefixes/suffixes and apply a whole set of other naming rules to ensure that the final classes and member properties conform to .net naming conventions (or your own naming conventions) even if the database objects don’t.


The naming rule settings are applied by the Model Comparer only when adding entities or members to the CSDL portion of the model. For renaming existing CSDL entities and members, the add-in has a separate feature that use the same set of settings but allows renaming existing entities and entity members.

What’s next?

The Model Comparer is a brand new feature in Huagati DBML/EDMX Tools, and it will get new features and improvements in various areas in the near (and far) future. Besides general usability improvements, the next version (1.93) will introduce new reporting features. More on this when 1.93 is released.

Want to try it?

If you want to try out the Model Comparer, all you need to do is head over to http://www.huagati.com/dbmltools/ and download the Huagati DBML/EDMX Tools add-in.

After downloading, click on the ‘trial license’ link to get a trial license, fill out your details, and you will receive a license key that will enable you to use the add-in for free for 20 days. If you’re happy with it and want to continue using it after that, please buy a license (or subscribe for only $15/month/user) to support further development of this and other features.

The add-in includes the Model Comparer for EF4 as well as a whole lot of other useful extensions to the Entity Framework and Linq-to-SQL designers in Visual Studio 2010 and 2008. (Note: Some add-in features such as the EF4 Model Comparer are only available under VS2010)
